Description

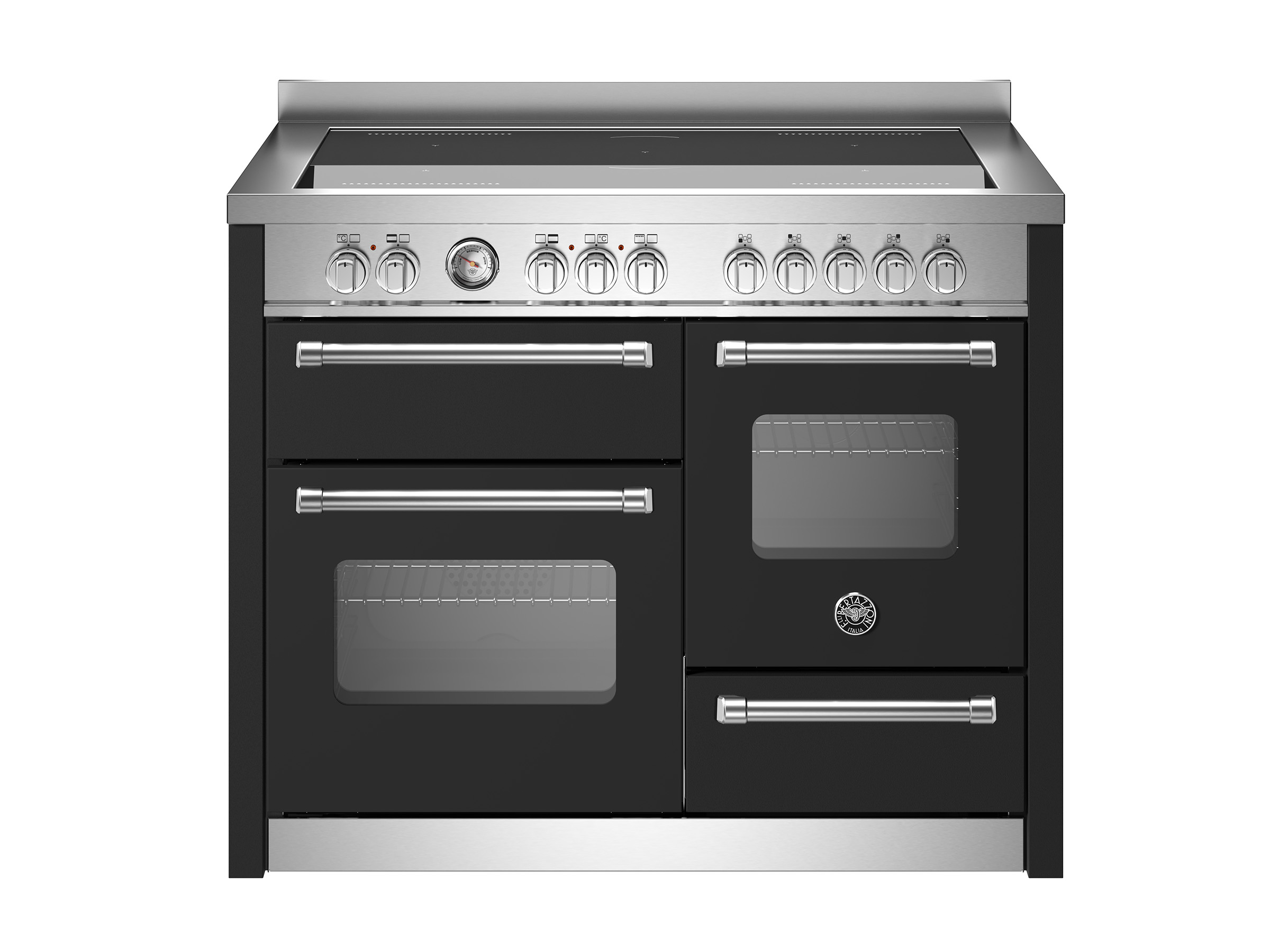

110cm induction top electric triple oven

MAS115I3E User Manual

The triple-oven range cooker is the pinnacle of versality. The main oven electric oven has 11 functions, from convection, baking and grilling to warming and features a thermometer on control panel. The useful auxiliary oven, with our fan, has four modes. A powerful adjustable grill is provided in the third oven.

The hob has an induction top with five heating zones, including booster feature, pot detection and residual heat indicator for each zone.

Matching range hood and backsplash available.

Colours shown will vary depending on your screen settings and resolution.



Worktop

• Size: 110cm
• Cooking zones: 5
• Number of induction zones: 5
• Worktop type: induction
• Worktop controls: knobs
• Knobs: solid metal
• Upstand: yes

Cooking zones

• Induction front left: (ø 160 mm) 1100 W – 1400 W
• Induction front right: (ø 160 mm) 1100 W – 1400 W
• Induction centre: (ø 230 mm) 2300 W – 3000 W
• Induction back left: (ø 200 mm) 1400 W – 2000 W
• Induction back right: (ø 200 mm) 1400 W – 2000 W

Oven cavity

• Oven configuration: triple
• Oven fuel: electric
• Main oven type: electric multifunction
• Main oven functions: bake / bottom bake / convection / convection bake / convection grill / defrosting / fast preheat / grill / oven light / pizza / upper bake
• Main oven volume: 69 l
• Main oven convection system: single with heating element
• Main oven energy rating: A
• Auxiliary oven type: electric conventional
• Auxiliary oven grill type: electric
• Auxiliary oven functions: bake / bottom bake / grill / oven light / upper bake
• Auxiliary oven volume: 54 l
• Auxiliary oven energy rating: A+
• Third oven grill type: electric
• Third oven volume: 24 l
• Oven controls: knobs / thermometer
• Inner oven door: triple
• Removable inner glass: yes
• Tray handle: yes
• Oven levels: 4
• Timer: thermometer
• Oven door closing: standard
• Wire-shelves: 3 chromed
• Tray: 2 enamelled
• Oven lights: single

Bottom

• Storage compartment: drawer
• Toekick panel: yes

Technical specifications

• Voltage and frequency: 220/240 V – 50/60 Hz – 50 A
• Absorbed power (W): 11500 W

.

.

.
