Description
General product information

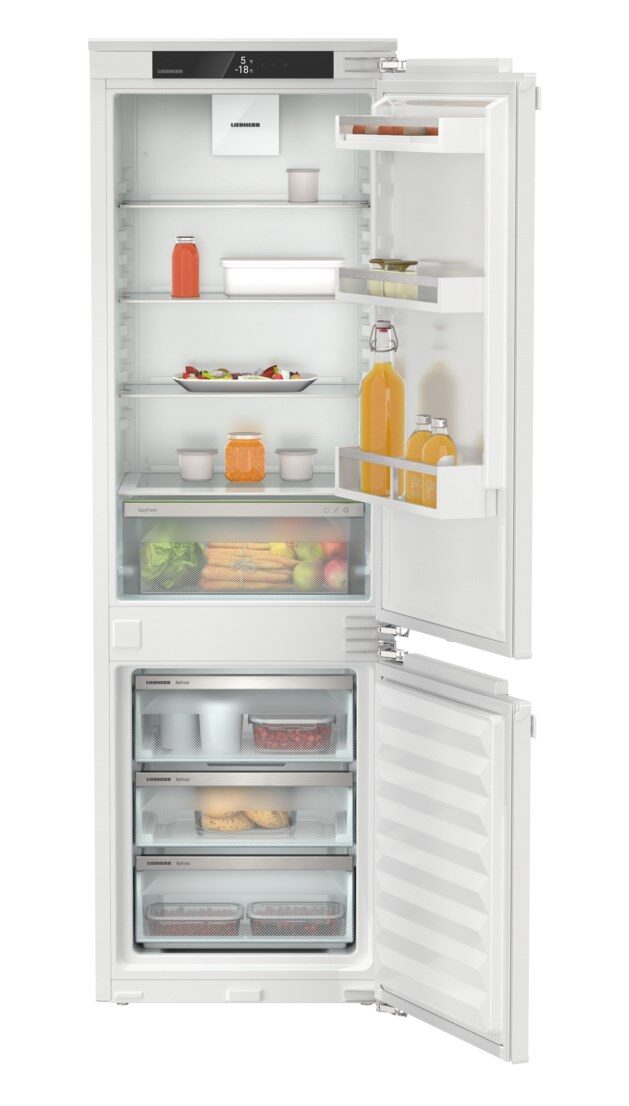

- Model type: Integrated fridge-freezer with EasyFresh and NoFrost
- GTIN: 4016803117797
- Series: Peak
Output and consumption
- Energy efficiency class: C
- Energy consumption per year: 146 kWh/a
- Climate class: SN-T
- Noise level: 33 dB
- Refrigerant: R 600a
- Voltage: 220-240 V ~
- Frequency: 50-60 Hz
- Connection rating: 1.4 A 183 W
Control and functions
- Control: 2,4“ TFT colour display, Touch & Swipe display
- Control unit: Touch & Swipe
- Number of temperature zones: 2
- Number of regulated refrigeration circuits: 2
- Temperature display: Fridge & freezing compartment
- SuperCool: Adjustable on appliance and via app
- SuperFrost: Adjustable on appliance and via app
- Door alarm, cooling: Adjustable on appliance and via app
- Door alarm, freezing: Adjustable on appliance and via app
- BottleTimer: Adjustable on app
- Connectivity solution: integrated, fixed
- IceCubeTimer: —
- NightMode: Adjustable on app
- Display lock: Adjustable on appliance
Refrigerator compartment
- Adjustable temperature range, refrigerator compartment: +2 °C to +9 °C
- Moisture regulation: DuoCooling
- Refrigerator compartment climate zones: EasyFresh
- Defrosting method: automatic
- Forced air cooling: ✔
- FreshAir filter: in valve
- Pull-out system drawer, refrigerator compartment: Partially-extendible telescopic rails
- SoftSystem: ✔
- Illumination cooling compartment: Light panel, both sides
- Number of storage shelves, refrigerator compartment: 6
- Of which separable: 1
- of which height-adjustable: 5
- VarioSafe: ✔
- OpenStage drawers: —
- Bottle storage: 3-bottle shelf
- Bottle rack: 1
- Number of can racks: 2
- VarioBox: Pull-out
- VarioBoxes: 2
- Butter dish: ✔
- Egg tray: Variable
- Storage rack: Bottle and can rack
- Height-adjustable inner door shelf: Gradual adjustment
Freezer compartment
- Temperature range freezer compartment: -15 °C to -26 °C
- Cooling technology: NoFrost
- Freezer compartment position: Bottom
- Defrosting method: Automatic
- Storage time in case of fault according to GS *: 9 h
- Freezing capacity in 24 hours according to GS *: 6 kg / 24h
- No. of drawers in freezer compartment: 3
- FrostSafe: Drawers closed on all sides with transparent front
- Drawer pull-out system, freezer compartment: Partially-extendible telescopic rails
- Interior light, freezer compartment: LED light
- 4-star freezer compartment door: —
- Number of glass shelves, 4-star freezer compartment: 0
- VarioSpace: ✔
- IceMaker: Yes
- Type of hose: Mains water hose with WaterStop
- IceMaker safe lighting: ✔
- Water inlet: Fixed water connection
- MaxIce function: 1.5 kg / 24h
- Ice cube production: 1.2 kg / 24h
- Ice cube storage: 5 kg
- Ice cube tray: —
- Number of ice cube trays: 0
- Number of water filters: 0
- Number of cold storage accumulators: 2
- Freezer tray: 1
- Star-rating: 4
Design and materials
- Dry rear panel: ✔
- Material dry back wall: Stainless steel with SmartSteel
- Inner door décor: SmartSteel
- Design of inner door rack: Premium GlassLine
- Material door shelves: Glass with stainless steel trim
- Storage shelf material, refrigerator compartment: Glass
- Material of adjustable shelves in the freezer compartment: Glass
- Door material: Steel
Set-up and installation
- Type of installation: Designed for integrated use
- Door assembly: Fixed door
- Max. kitchen unit door weight: 18/12
- Door hinges: Right reversible
- Door hinge replacement: Possible for customer
- Door opening angle: 115°
- Door seal: Replaceable
- Height-adjustable feet: 2
- Levelling bars: ✔
- Number of levelling bars: 2
- Ventilation: Ventilation grates
- Decor frame: —
- Connector cable (length): 2,200 mm
Specifications
- Aperture dimensions height/width/depth: 177.2 – 178.8 / 56 – 57 / 55 cm
- Height / Width / Depth (with packaging): 1,829 / 572 / 622 mm
- Dimensions H/W/D: 177 / 55.9 / 54.6 cm
- Weight (without packaging): 76.3 kg
- Weight (with packaging): 80.5 kg
- Total volume **: 255 l
- Volume, refrigerator compartments: 184 l
- Volume, freezer compartments: 71 l
.
.
.
