£999.17 Exc. VAT

ICNE 5103

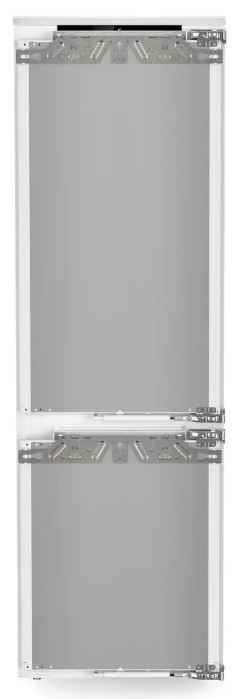

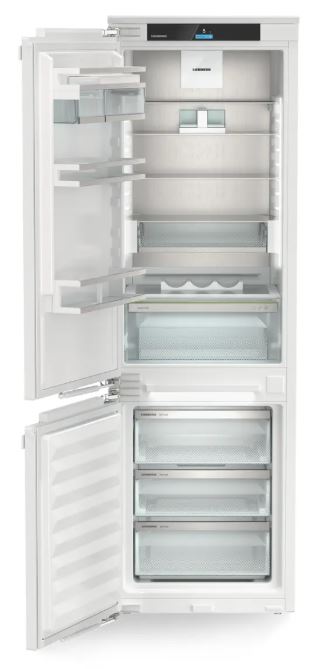

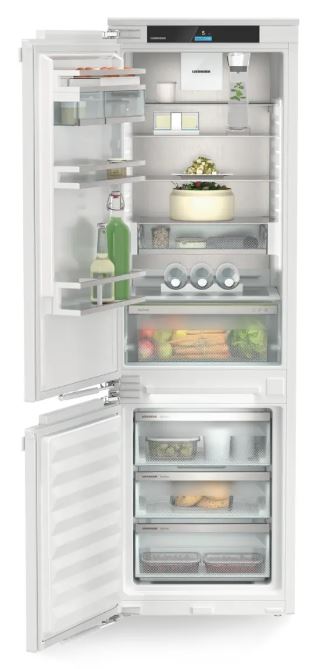

Integrated fridge-freezer with EasyFresh and NoFrost

Aperture dimensions height/width/depth 177.2 – 178.8 / 56 – 57 / 55 cm
Total volume 253 l
Noise level 34 dB
IceMaker No
Connectivity solution retrofittable
.
.
.
Add to Wishlist
Add to Wishlist
SKU: ICNE5103 Categories: , Tag:

Description

Output and consumption

  • Energy efficiency class: E
  • Energy consumption per year: 227 kWh/a
  • Climate class: SN-T
  • Noise level: 34 dB
  • Refrigerant: R 600a
  • Voltage: 220-240 V ~
  • Frequency: 50-60 Hz
  • Connection rating: 1.4 A 183 W

Control and functions

  • Control: Monochrome LC display, touch display
  • Control unit: Touch
  • Number of temperature zones: 2
  • Number of regulated refrigeration circuits: 2
  • Temperature display: Fridge & freezing compartment
  • SuperCool: Adjustable on appliance and via app
  • SuperFrost: Adjustable on appliance and via app
  • Door alarm, cooling: Adjustable on appliance and via app
  • Door alarm, freezing: Adjustable on appliance and via app
  • BottleTimer: Adjustable on app
  • Connectivity solution: retrofittable
  • IceCubeTimer: —
  • NightMode: Adjustable on app
  • Display lock: Adjustable on appliance

Refrigerator compartment

  • Adjustable temperature range, refrigerator compartment: +2 °C to +9 °C
  • Moisture regulation: DuoCooling
  • Refrigerator compartment climate zones: EasyFresh
  • Defrosting method: automatic
  • Forced air cooling: ✔
  • FreshAir filter: in valve
  • Pull-out system drawer, refrigerator compartment: Integrated drawer guide
  • Illumination cooling compartment: LED ceiling lighting
  • Number of storage shelves, refrigerator compartment: 4
    Of which separable: 0
    of which height-adjustable: 3
  • VarioSafe: —
  • OpenStage drawers: —
  • Bottle storage: —
  • Bottle rack: 1
  • Number of can racks: 2
  • VarioBox: —
  • VarioBoxes: 0
  • Butter dish: —
  • Egg tray: 10 eggs
  • Storage rack: Bottle and can rack
  • Height-adjustable inner door shelf: Gradual adjustment

Freezer compartment

  • Temperature range freezer compartment: -15 °C to -26 °C
  • Cooling technology: NoFrost
  • Freezer compartment position: Bottom
  • Defrosting method: automatic
  • Storage time in case of fault according to GS *: 9 h
  • Freezing capacity in 24 hours according to GS *: 6 kg / 24h
  • No. of drawers in freezer compartment: 3
  • FrostSafe: Drawers closed on all sides with transparent front
  • Drawer pull-out system, freezer compartment: Drawer on safety glass
  • Interior light, freezer compartment: —
  • 4-star freezer compartment door: —
  • Number of glass shelves, 4-star freezer compartment: 0
  • VarioSpace: ✔
  • IceMaker: No
  • IceMaker safe lighting: —
  • Water inlet: —
  • Ice cube tray: —
  • Number of ice cube trays: 0
  • Number of water filters: 0
  • Number of cold storage accumulators: 0
  • Freezer tray: 0
  • Star-rating: 4

Design and materials

  • Dry rear panel: —
  • Material dry back wall: —
  • Inner door décor: —
  • Material door shelves: White plastic
  • Storage shelf material, refrigerator compartment: Glass
  • Material of adjustable shelves in the freezer compartment: Glass
  • Door material: Steel

Set-up and installation

  • Type of installation: Designed for integrated use
  • Door assembly: Fixed door
  • Max. kitchen unit door weight: 18/12
  • Door hinges: Right reversible
  • Door hinge replacement: Possible for customer
  • Door opening angle: 115°
  • Door seal: Replaceable
  • Height-adjustable feet: 2
  • Levelling bars: ✔
  • Number of levelling bars: 2
  • Ventilation: Ventilation grates
  • decor frame: —
  • Connector cable (length): 2,200 mm

Specifications

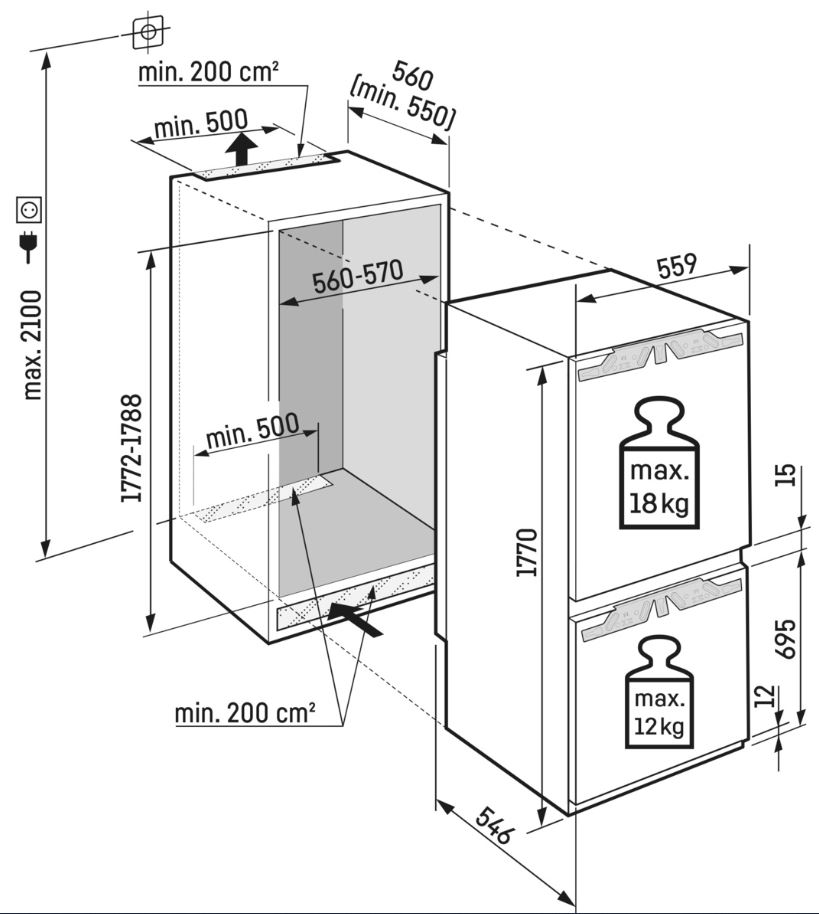

  • Aperture dimensions height/width/depth: 177.2 – 178.8 / 56 – 57 / 55 cm
  • Height / Width / Depth (with packaging): 1,829 / 572 / 622 mm
  • Dimensions H/W/D: 177 / 55.9 / 54.6 cm
  • Weight (without packaging): 59.3 kg
  • Weight (with packaging): 62.7 kg
  • Total volume **: 253 l
  • Volume, refrigerator compartments: 183 l
  • Volume, freezer compartments: 70 l
  • Of which 4-star compartment: 69.9 l

.

.

.

Additional information

Weight 59.3 kg
Dimensions 55 × 56-57 × 177.2-178 cm
