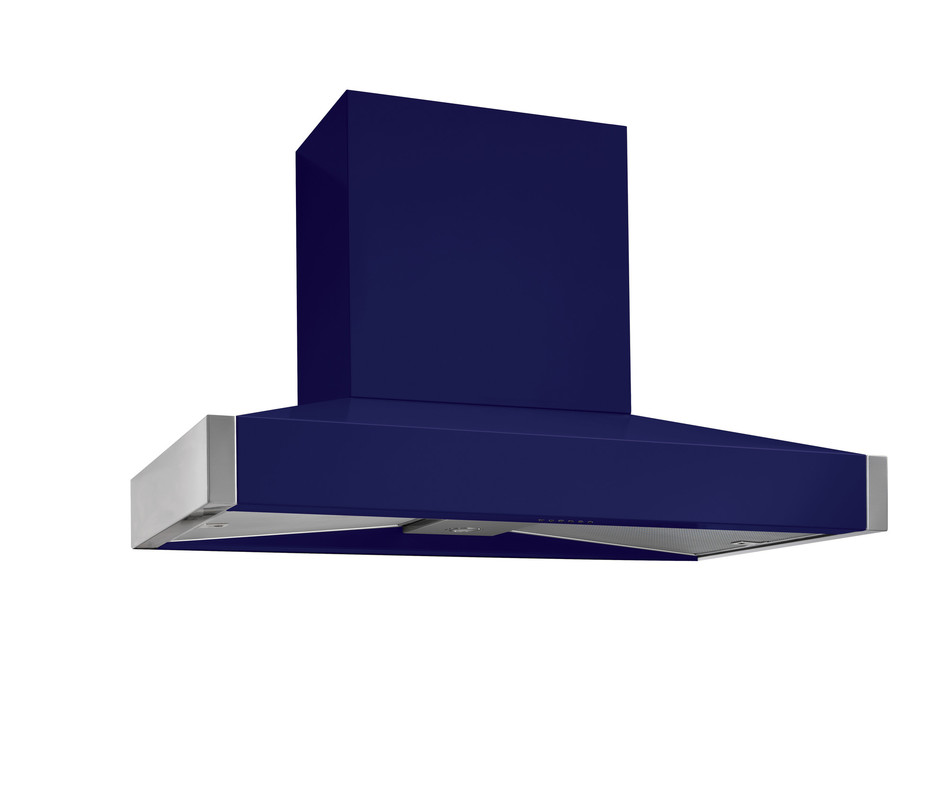

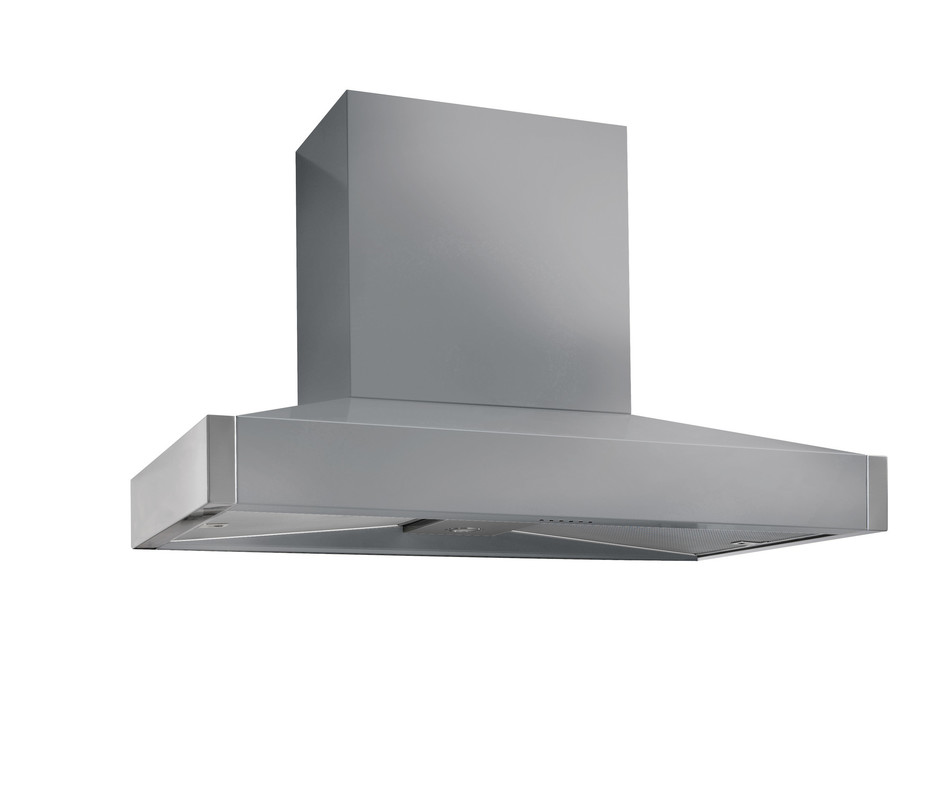

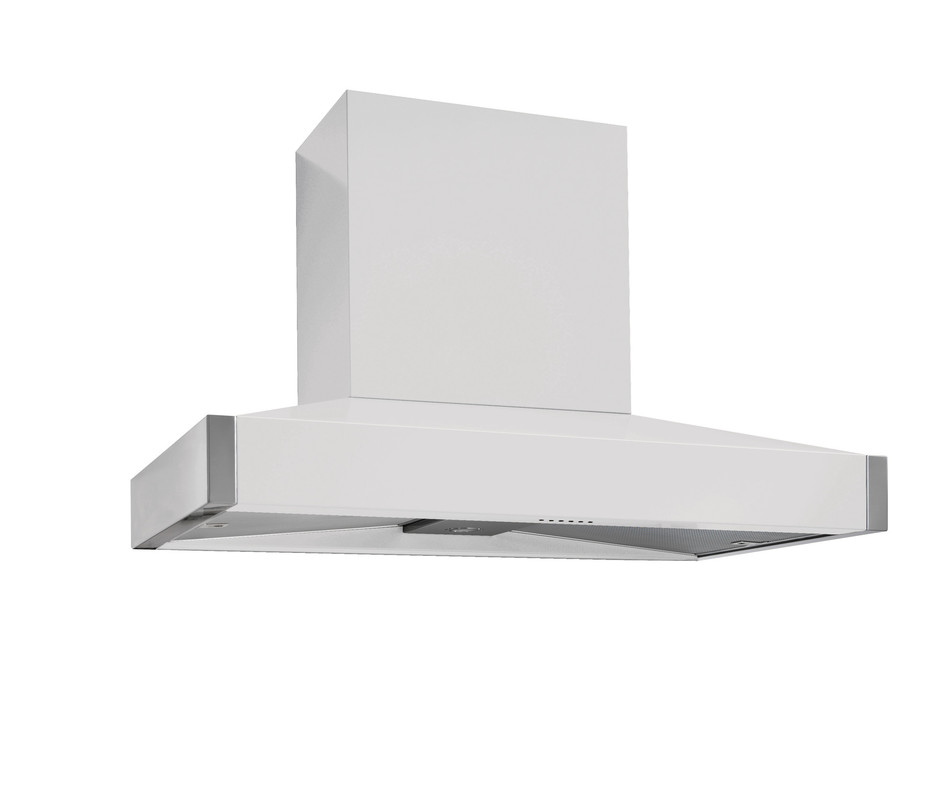

Mercury 1000mm Pitch Hood
MERCURY 1000 PITCH HOOD User Manual
Mercury extraction canopies are powerful and feature a variable speed centrifugal fan, removable air filters and integral spotlights for superior, highly effective hob illumination. A perfect match for the sleek, contemporary lines of the Mercury range cooker, these stylish hoods offer powerful extraction rates and come in a choice of colours to complement or contrast your kitchen.
|
Width (mm)
|
1000
|
|
Noise (db)
|
61.6
|
|
Energy Rating
|
A
|
|
Number of Speed Settings
|
3
|
|
Weight (kg)
|
28
|
|
Light Power (W)
|
2
|
|
Filter
|
Cassette
|
|
Energy Efficiency Index EEI
|
48.1
|
|
Fluid Dynamic Efficiency Class
|
A
|
|
Fluid Dynamic Efficiency FDE
|
32.1
|
|
Flow Rate at BEP
|
481.2
|
|
Static Pressure at BEP
|
439
|
|
Electric Power Input at BEP
|
182.6
|
|
Time Increase Factor F
|
0.8
|
|
Lighting Efficiency Class
|
A
|
|
Lighting Efficiency LE
|
38.8
|
|
Grease Filtering Efficiency Class
|
B
|
|
Grease Filtering Efficiency GFE
|
89.5
|
|
Width (mm)
|
1000
|
|
Effectiveness Of The Hob Light
|
202
|
|
Annual Energy Consumption AEC
|
57.1
|
|
Standard Annual Energy Consumption SAEC
|
118.59
|
|
Nominal electric power input of the lighting system
|
5.2
|
|
Extracted air flow in setting 1 at working point
|
244.1
|
|
Extracted air flow in setting 1 free blowing
|
250
|
|
Extracted air flow in setting 2 at working point
|
378
|
|
Extracted air flow in setting 3 at working point
|
511
|
|
Extracted air flow in setting 3 free blowing
|
525
|
|
Extracted air flow in setting boost at working point
|
775.3
|
|
Extracted air flow in setting boost free blowing
|
795.8
|
|
Noise value extracted air setting 1 sound power level
|
45.3
|
|
Noise value extracted air setting 2 sound power level
|
53.5
|
|
Noise value extracted air setting 3 sound power level
|
61.6
|
|
Noise value extracted air setting boost sound power level
|
70.5
|
|
Power Consumption in Standby Mode (Ps) (W)
|
0.27
|
.
.
.
