Description
SN73HX03VG Specification Sheet
General
- Installation typology: Fully-integrated
- Built-in / Free-standing: Built-in
- Colour of appliance: N/A
- Removable top: No
- Variable hinge: Yes
- Column installation: Yes
- Adjustable plinth: Both horizontal and vertical
- Energy Efficiency Class: C
- Energy Consumption for 100 cycles Eco Programme: 75 kWh/100 cycles
- The energy consumption of the eco programme in kWH per cycle: 0.747 kWh/cycle
- The water consumption of the eco programme in litres per cycle: 9 l
- Airborne acoustical noise emission class: C
- Airborne acoustical noise emissions: 46 dB(A) re 1pW
- Eco Programme duration: 4:55 h
- Maximum number of place settings: 14
- List of programmes: Intensive / Custom program / Quick L / Economy / Auto 45-65°C / Quick Wash 45°C
- Additional operational options: Remote Start / Machine Care – 30 cycle reminder to run cleaning programme / varioSpeed Plus / intensiveZone / Half Load
- aquaStop: Yes
- Drying system: Heat exchanger
- rackmatic normal: Yes
- Tub material: Plastic

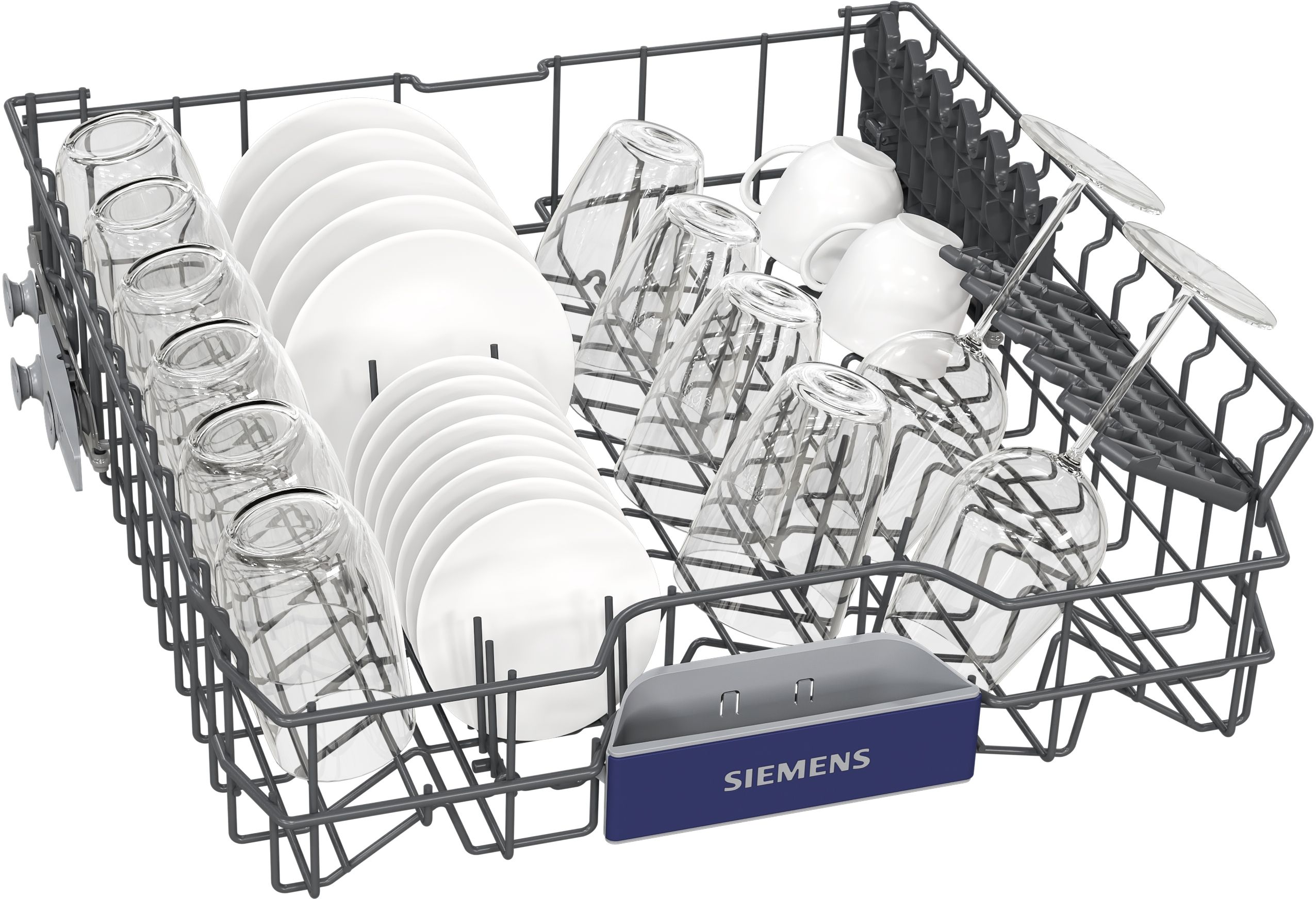

Basket and cutlery system
- Basket system: Maximum loading Flexibility
- Special cleaning zone in the upper basket
- 3rd Rack: 3rd Rack 1.0
- Cutlery system: Cutlery drawer
- Number of Flip Tines in Upper Rack: 2
- Number of Flip Tines in Lower Rack: 4
- Number of cup racks in the upper basket: 2
- Anti-slip protection in the upper basket: No
- Glass holder in the lower basket: No
- Adjustable upper basket: Rackmatic 3-stage
Size and weight
- Dimensions: 815 x 598 x 550 mm
- Dimensions of the packed product (HxWxD): 880 x 660 x 670 mm
- Net weight: 34.2 kg
- Depth with open door 90 degree: 1150 mm
- Minimum height for installation: 815 mm
- Maximum height for installation: 875 mm
- Minimum width for installation: 600 mm
- Maximum width for installation: 608 mm
- Depth for installation: 550 mm
- Weight furniture front (min – max): 4.5 – 11 kg
- Height of removable worktop: 0 mm
Comfort
- openassist: No
- TFT display: No
- Interior light: No
- Program status indication: Program Status Light
- Drying progress indicator: End of program audible
- Start delay time max (h): 24 h
Cleaning technology and sensoric
- Precise Glass Protection: No
- Eco silence drive: Yes
- aquasensor: Yes
- Water management system: No
- Detergent detection: Yes
Connectivity
- Home Connect: Yes
- Home Connect Features: Remote Monitoring and Control
- Add-On functions via Home Connect app: Silence on Demand / Hygiene Plus
Safety
- aquaStop: Yes
- Child safety devices: No
.
 |
 |
.
.
.
