Description
LB77NAC60B Specification Sheet
Top 8
- Installation typology: Built-in
- Type of appliance width: 70 cm
- Control your hood with your Home Connect hob: No
- Sound pressure recirculated air level: 2 dB(A) re 1pW
- PerfectAir: No
- Operating Mode: Convertible
- Maximum output air extraction: 595 m³/h
- Boost position air extraction: 730 m³/h
General
- Type of appliance width: 70 cm
- Colour body: Black
- Installation typology: Built-in
- Operating Mode: Convertible
- Total power of the motors: 250 W

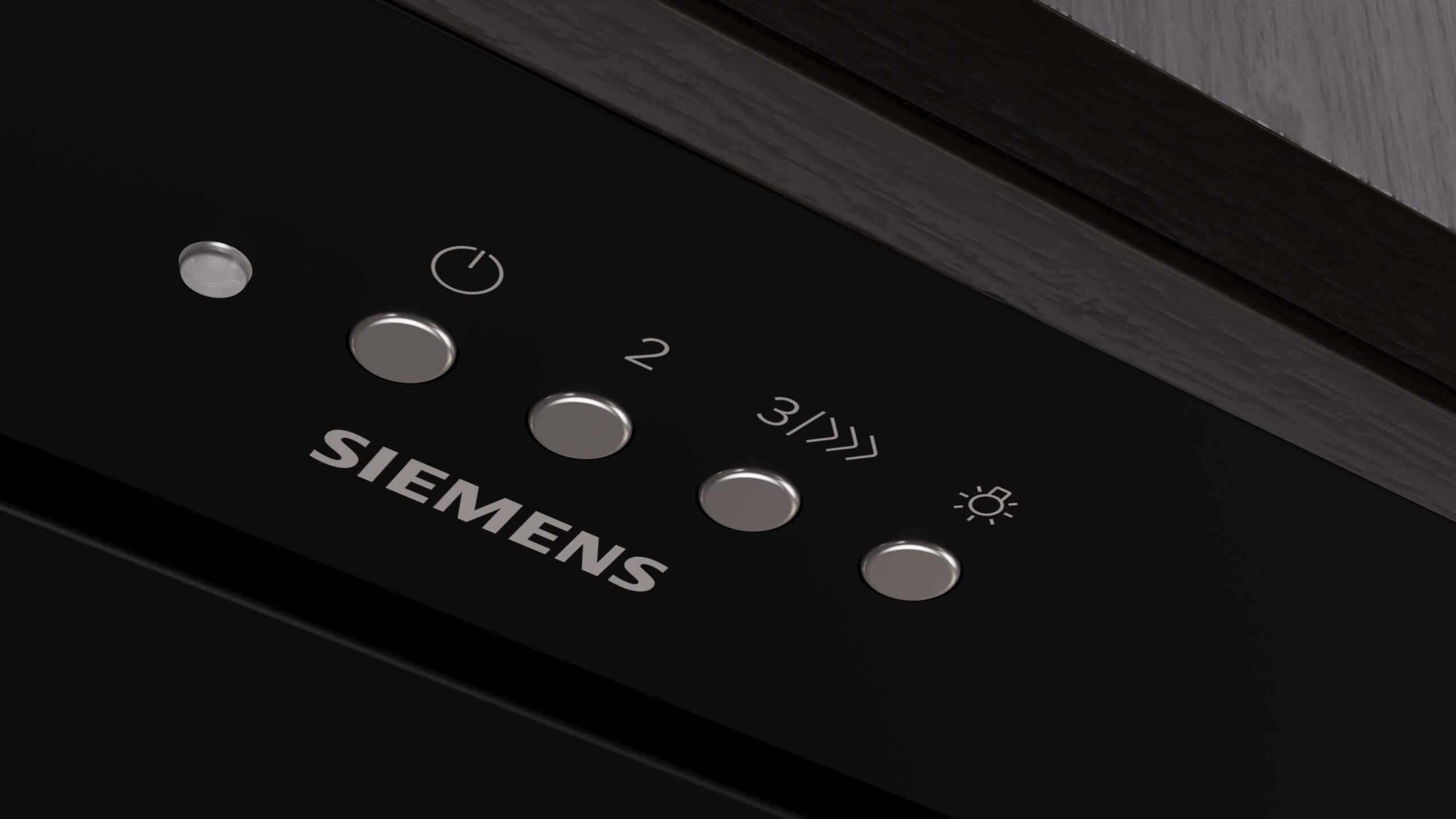

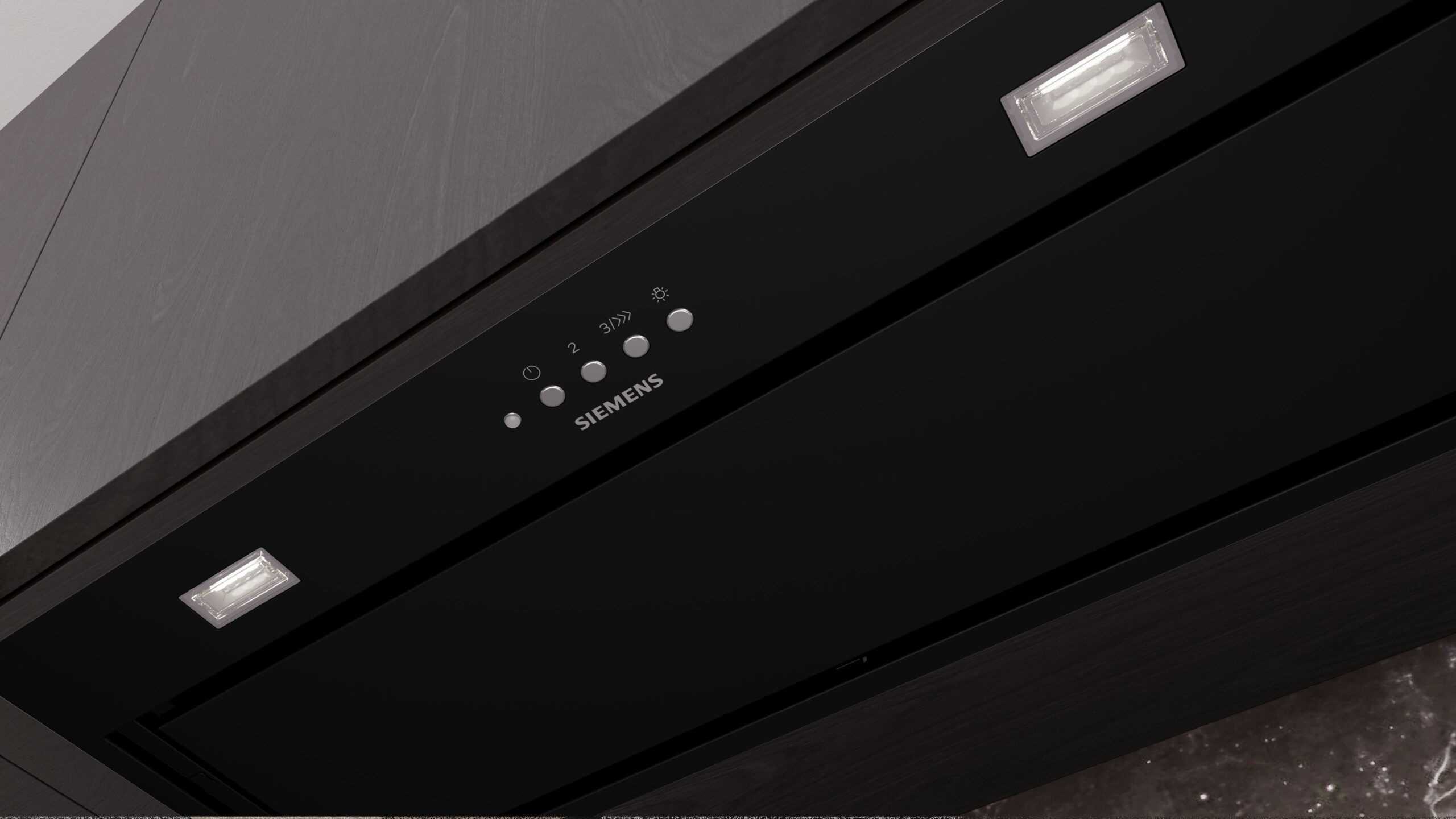

- Type of control setting devices: LED
- Low-lift pushbuttons
- Number of speed settings: 3-stages + intensive setting
- Maximum output air extraction: 595 m³/h
- Boost position air extraction: 730 m³/h
- Sound power at max. speed (2010/30/EC): 63 dB
- Sound power boost (2010/30/EC): 68 dB
- Maximum output recirculating air: 580 m³/h
- Boost position output recirculating: 705 m³/h
- Sound power at max. speed (recirculation): 70 dB
- Sound power boost (recirculation): 73 dB

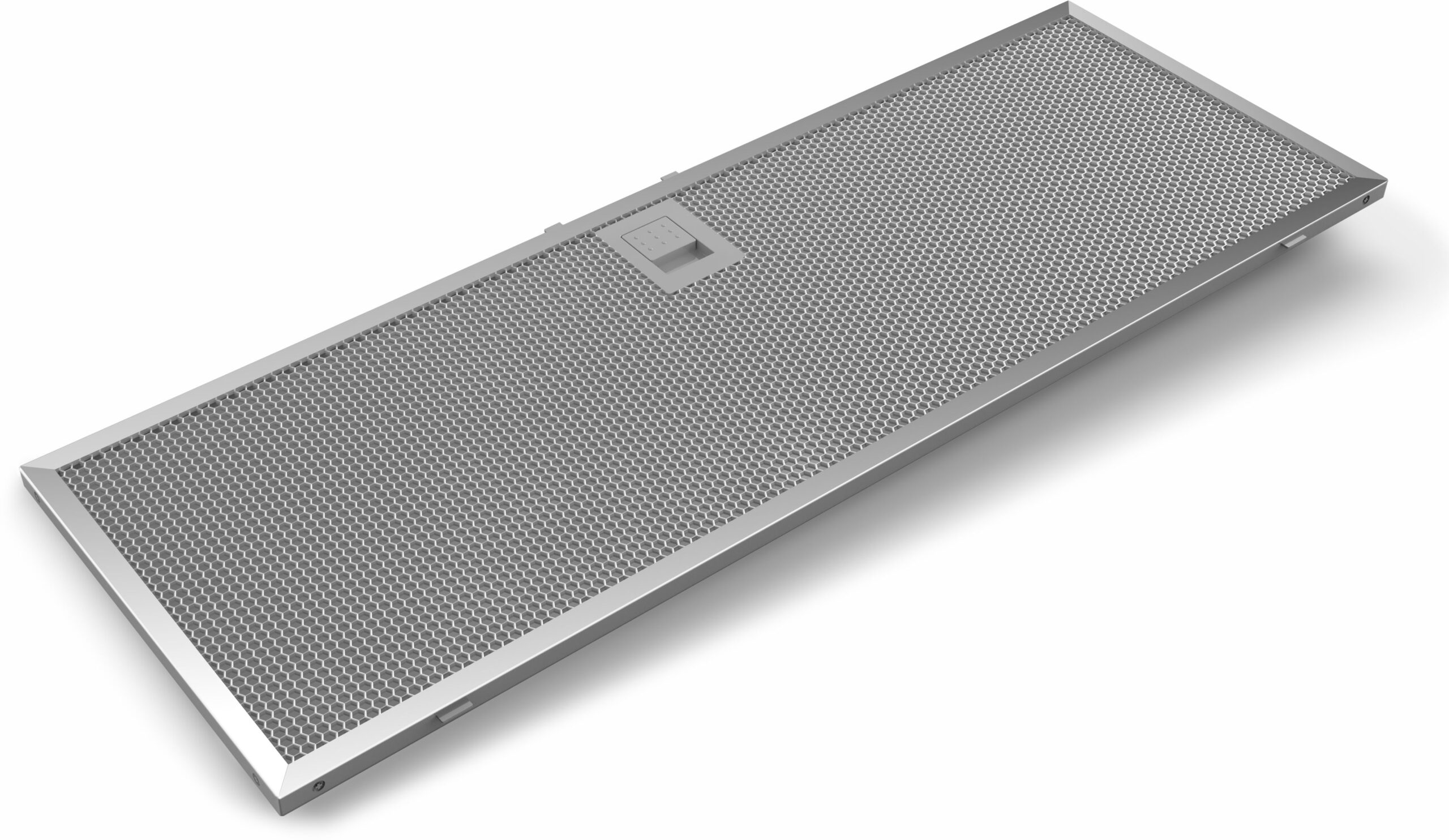

- Grease filter material: Washable aluminium
- Optional odour filters
- Energy efficiency rating: A
- Total annual energy consumption: 55.5 kWh/a
- Included user manuals
- Included accessories

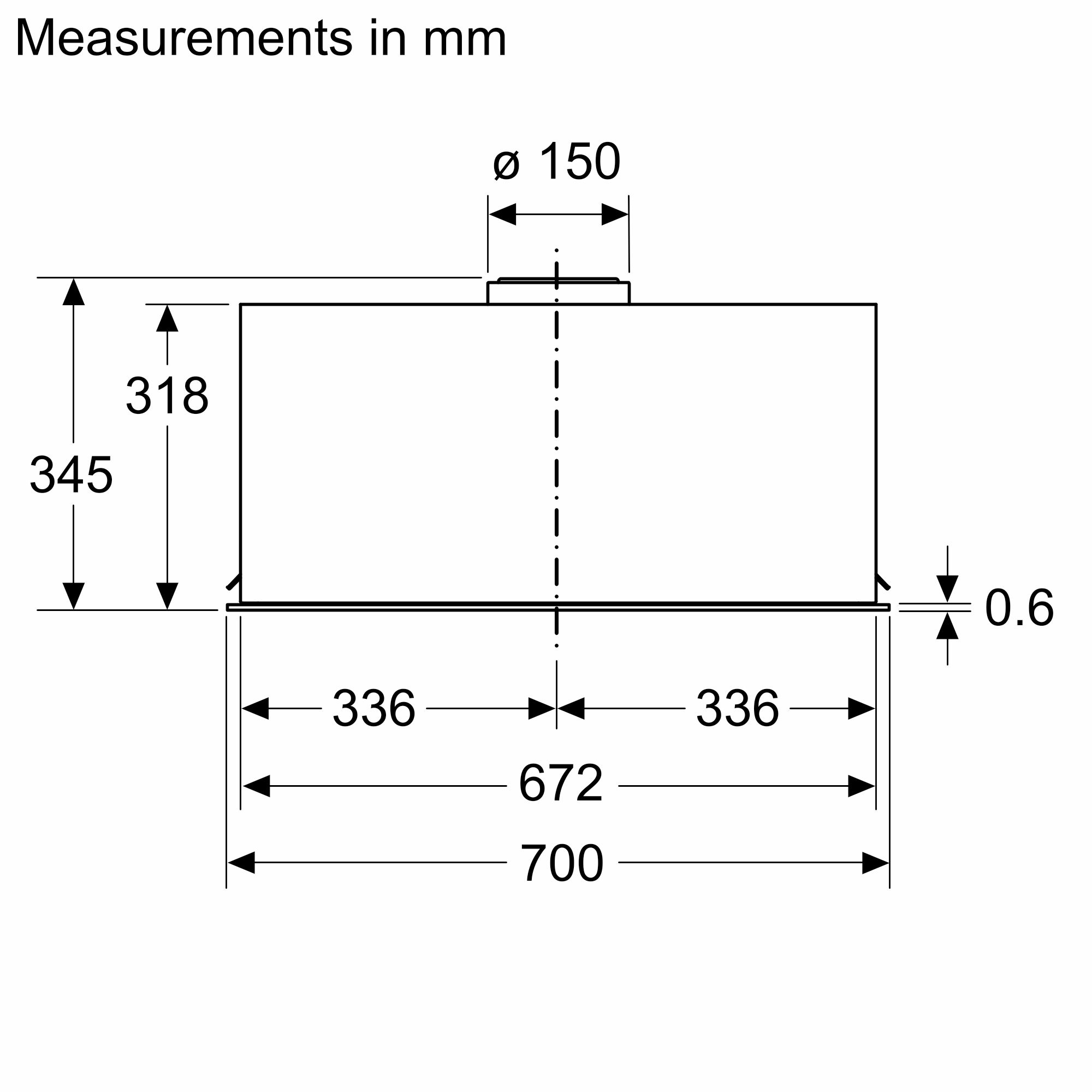

Dimensions

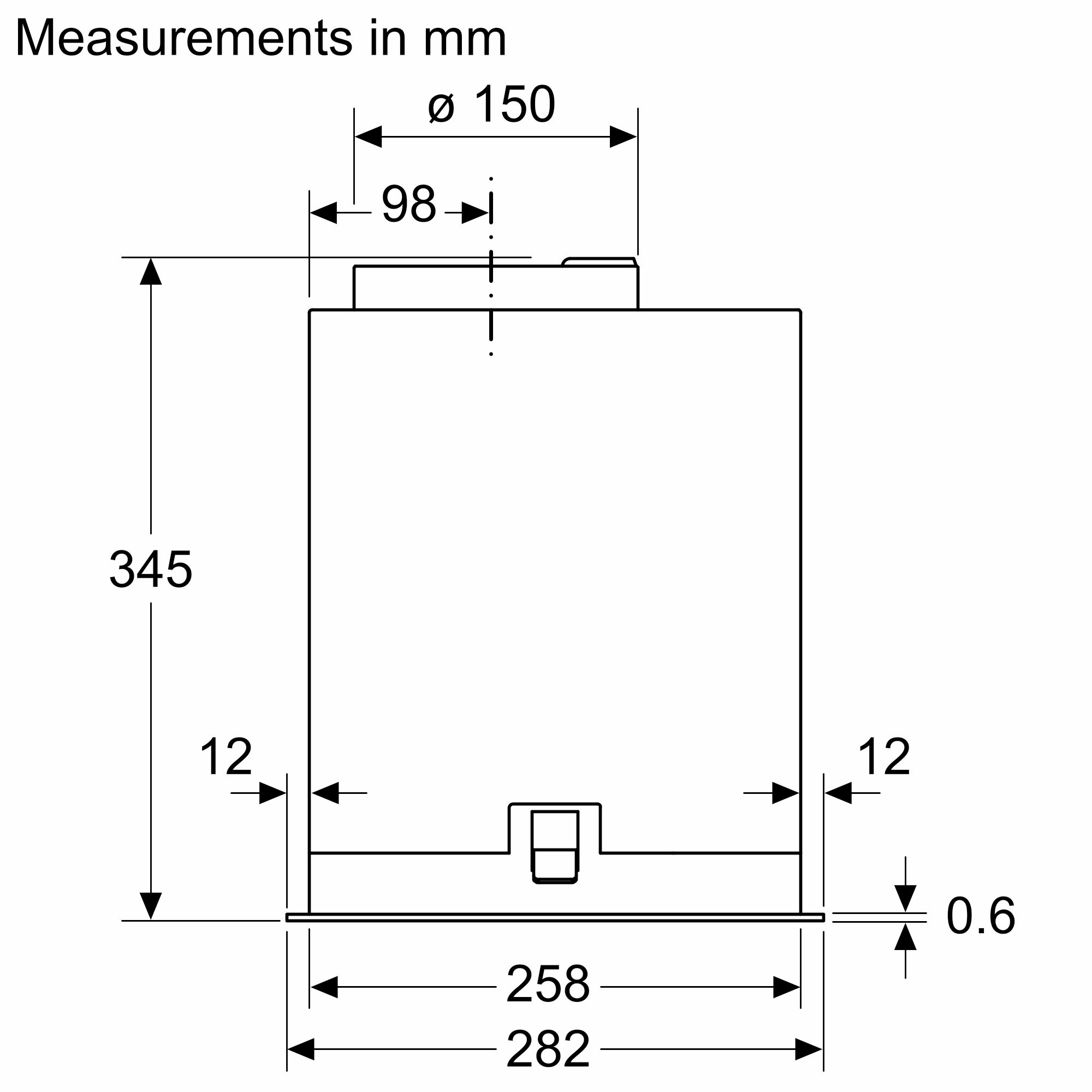

- Height of the appliance: 345 mm
- Width of the appliance: 700 mm
- Depth: 282 mm
- Dimensions of the packed product (HxWxD): 385 x 480 x 787 mm

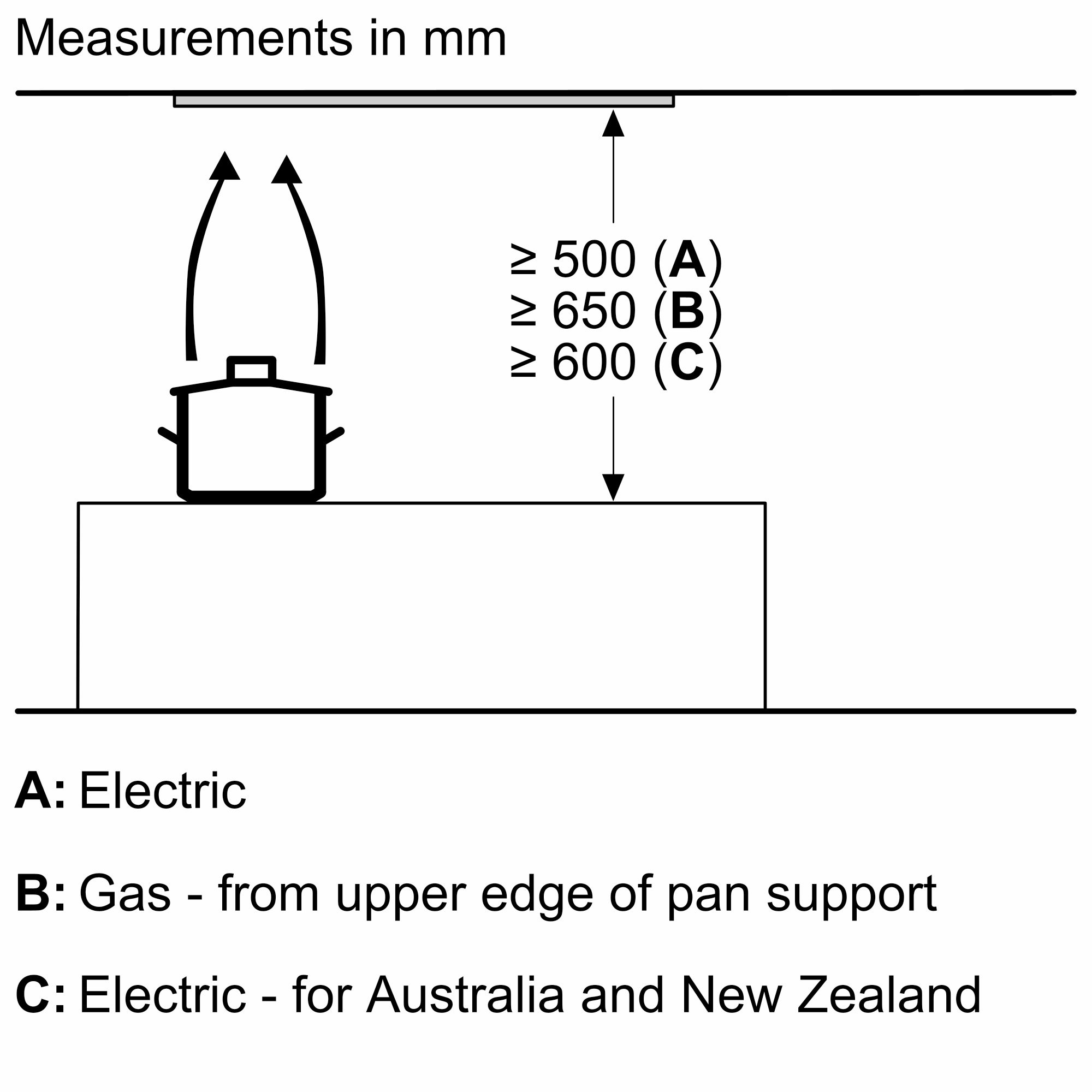

- Minimum distance above an electric hob: 500 mm
- Minimum distance above a gas hob: 650 mm
- Diameter of air outlet: 120 / 150 mm
- No-return airflow flap: Yes
- Length electrical supply cord: 150 cm
- Net weight: 11.3 kg
- Handle bar: Not applicable
- Appliance height exhaust air max: 345 mm
- Appliance height exhaust air min: 345 mm
- Appliance height recirculating max: 345 mm
- Appliance height recirculating min: 345 mm

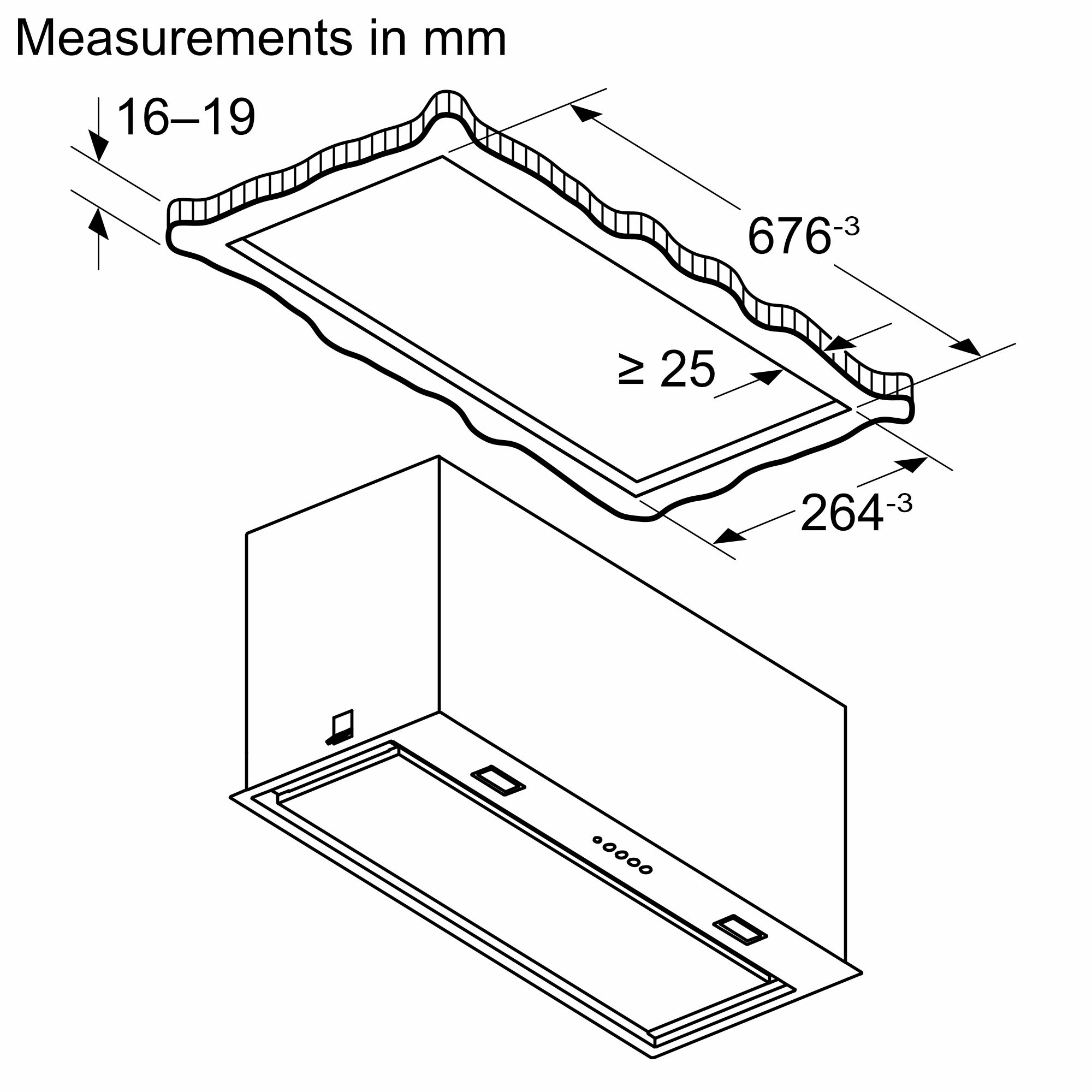

- Maximum width for installation: 676 mm
- Minimum width for installation: 676 mm
- Depth for installation: 264 mm
Comfort
- PerfectAir: No
- Eco silence drive: No
- Silence: No
- Clean filter reminders: No
- Boost position: Yes
- Delay Shut off modes: No
- Remote control: No
Light
- Type of lamps used: LED
- Number of lights: 2
- Total power of the lamps: 2 W
- Total luminance: 400 lm
- Colour temperature: Cold white (4.000 K)
- Illumination type softlight: No
- Colour temperature control via smartphone with Home Connect: No
- emotionLight Pro: No
Connectivity
- Home Connect: No
- Home Connect Features
Control your hood with your Home Connect hob: No
Smart Hood Automatic: No
.
.
.
