Description
Top 8
- Cooktop type: Gas cooktop
- Total number of positions that can be used at the same time: 5
- Step Flame technology – 9 steps: Yes
- Frame type: Flush or surface mounted
- Basic surface material: Tempered glass

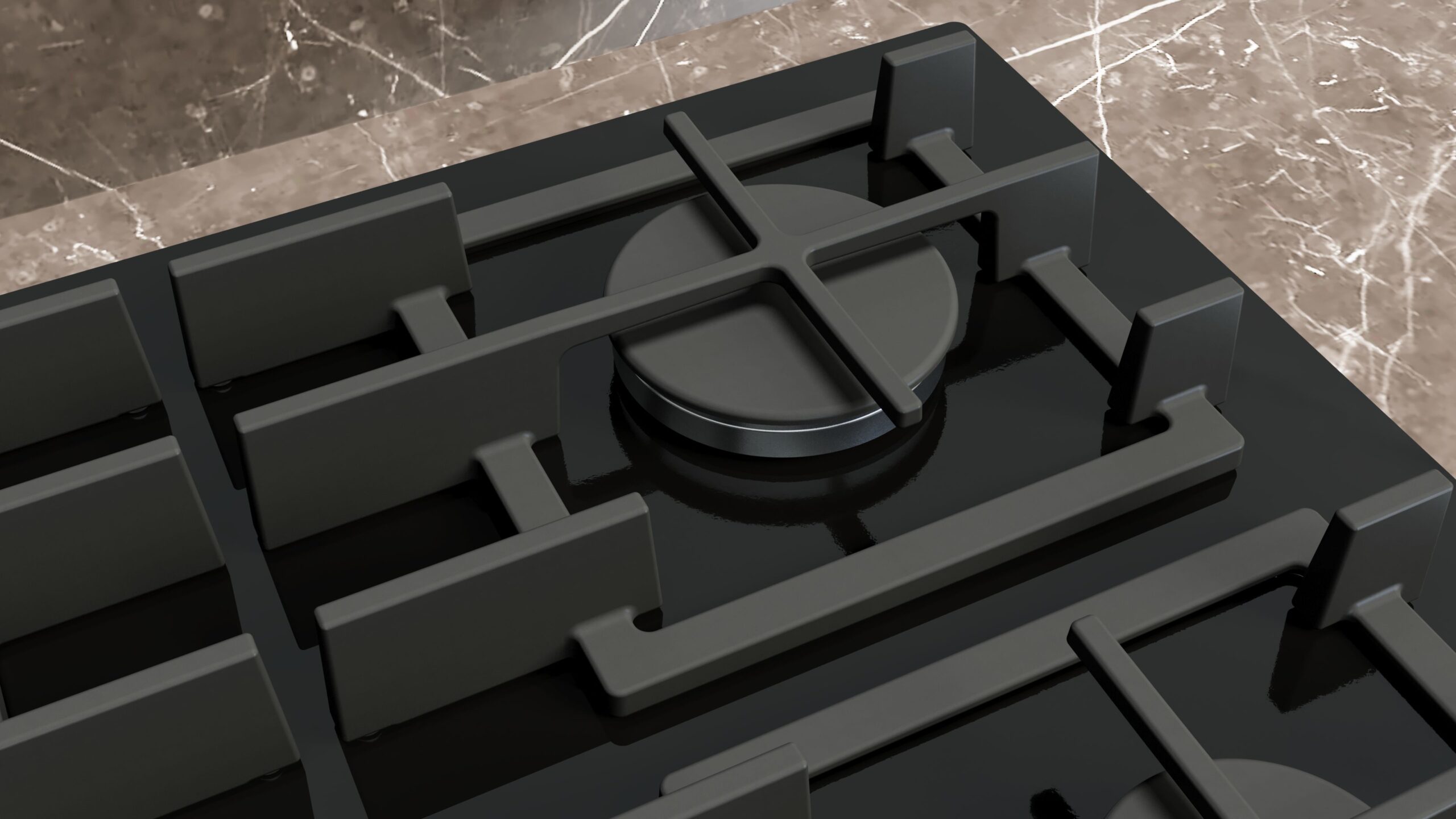

- Material of pan supports: Cast iron separable
- Gas type: Nat gas H/E/(L) 20 (25) mbar
- Nozzle set included for alternative gas type: Liquid gas G30, 31 28-30/37 mbar
Design
- Basic surface material: Tempered glass
- Colour of appliance: Black
- Frame type: Flush or surface mounted
- Flushmount: Yes
- Material of pan supports: Cast iron separable
- Flat burner: No
Installation
- Gas type: Nat gas H/E/(L) 20 (25) mbar
- Other certified gas types: Liquid gas G30 37 mbar (PL)
Natural gas H 25 mbar (HU)
Nat gas L/LL G25/20mbar (DE)
Natural gas L 25 mbar (NL)
Liquid gas G30, 31 28-30/37 mbar
Liquid gas 50 mbar - Nozzle set included for alternative gas type: Liquid gas G30, 31 28-30/37 mbar
- Type of appliance width: 90 cm
- Dimensions: 54 x 915 x 520 mm
- Dimensions of the packed product (HxWxD): 165 x 1116 x 659 mm

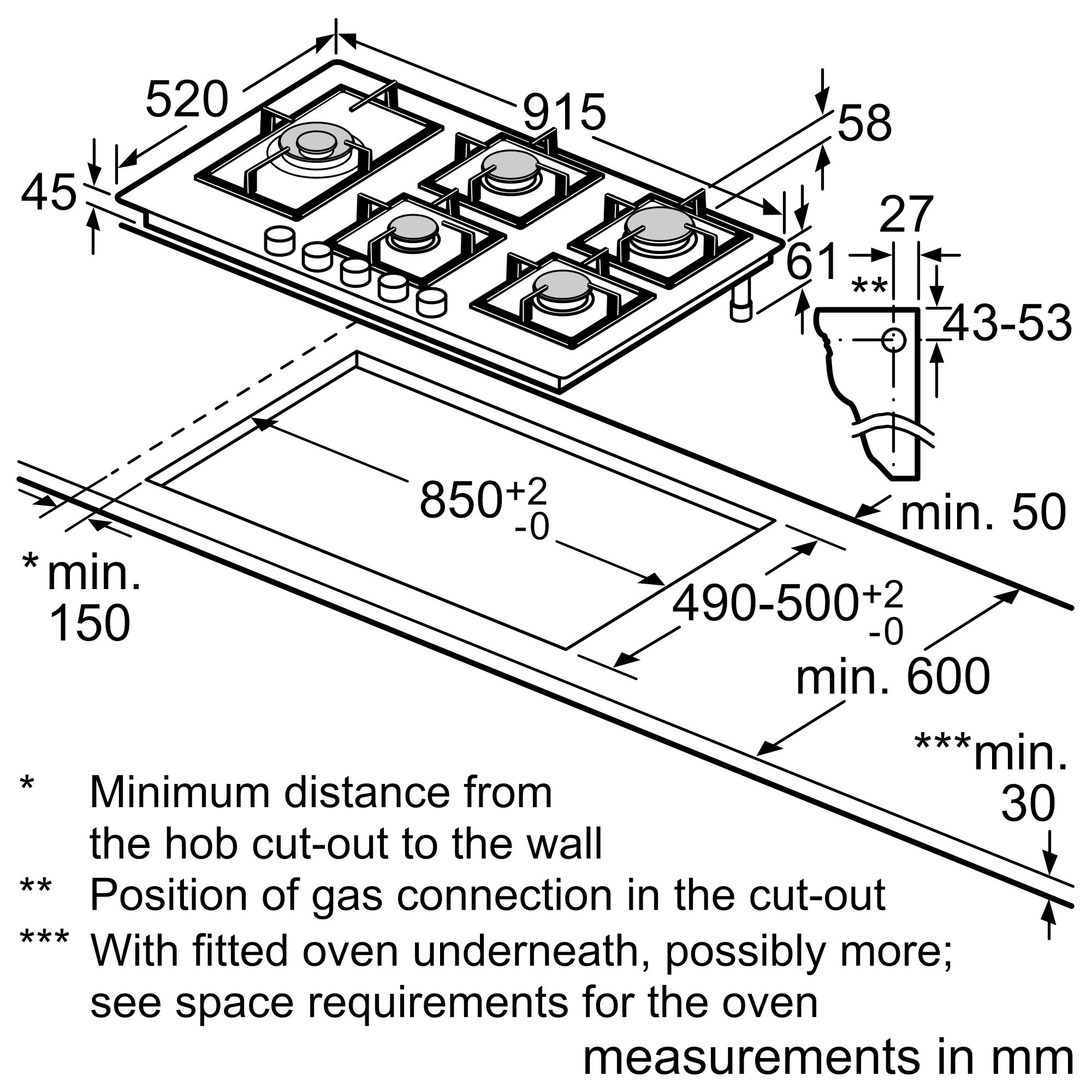

- Required niche size for installation (HxWxD): 45 x 850-850 x 490-500 mm
- Minimum worktop thickness: 20 mm
- Minimum worktop thickness for flush installation: 30 mm
- Length electrical supply cord: 100 cm
- Plug type: no plug (electrical connection by electrician)
- Gas connection rating: 11500 W
Burners and power
- Total number of positions that can be used at the same time: 5
- Dual wok burner: No
- Power of the heating elements: 1 x 1.0 KW, 1 x 3.0 KW, 1 x 4.0 KW, 2 x 1.75 KW
- Type Cooking zone: WOK burner
Standard burner
High-speed burner
Economy burner
Comfort

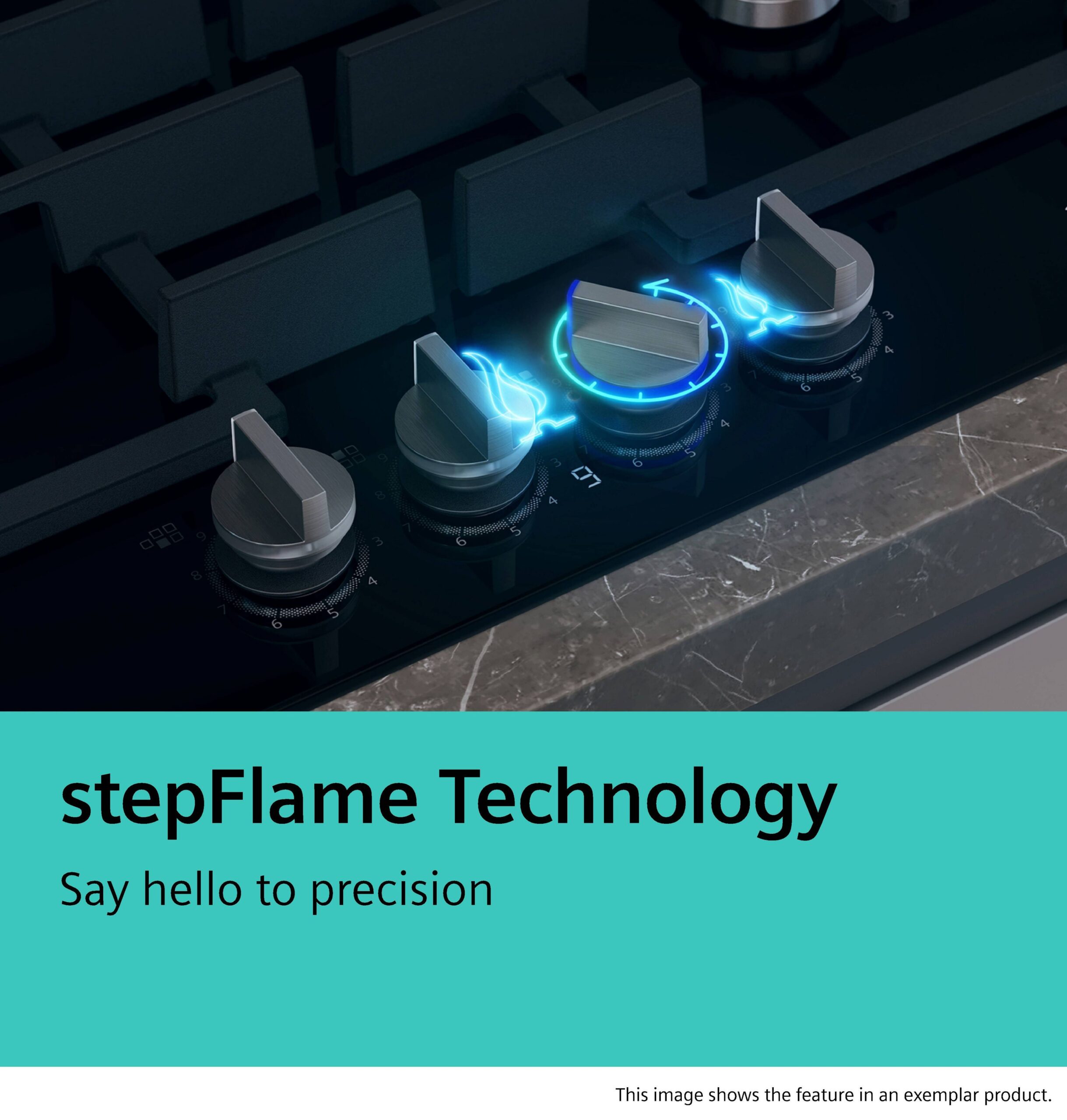

- Step Flame technology – 9 steps: Yes
- Display: No
- Dishwasher suitable pan support: Yes
- Location of control panel: Front

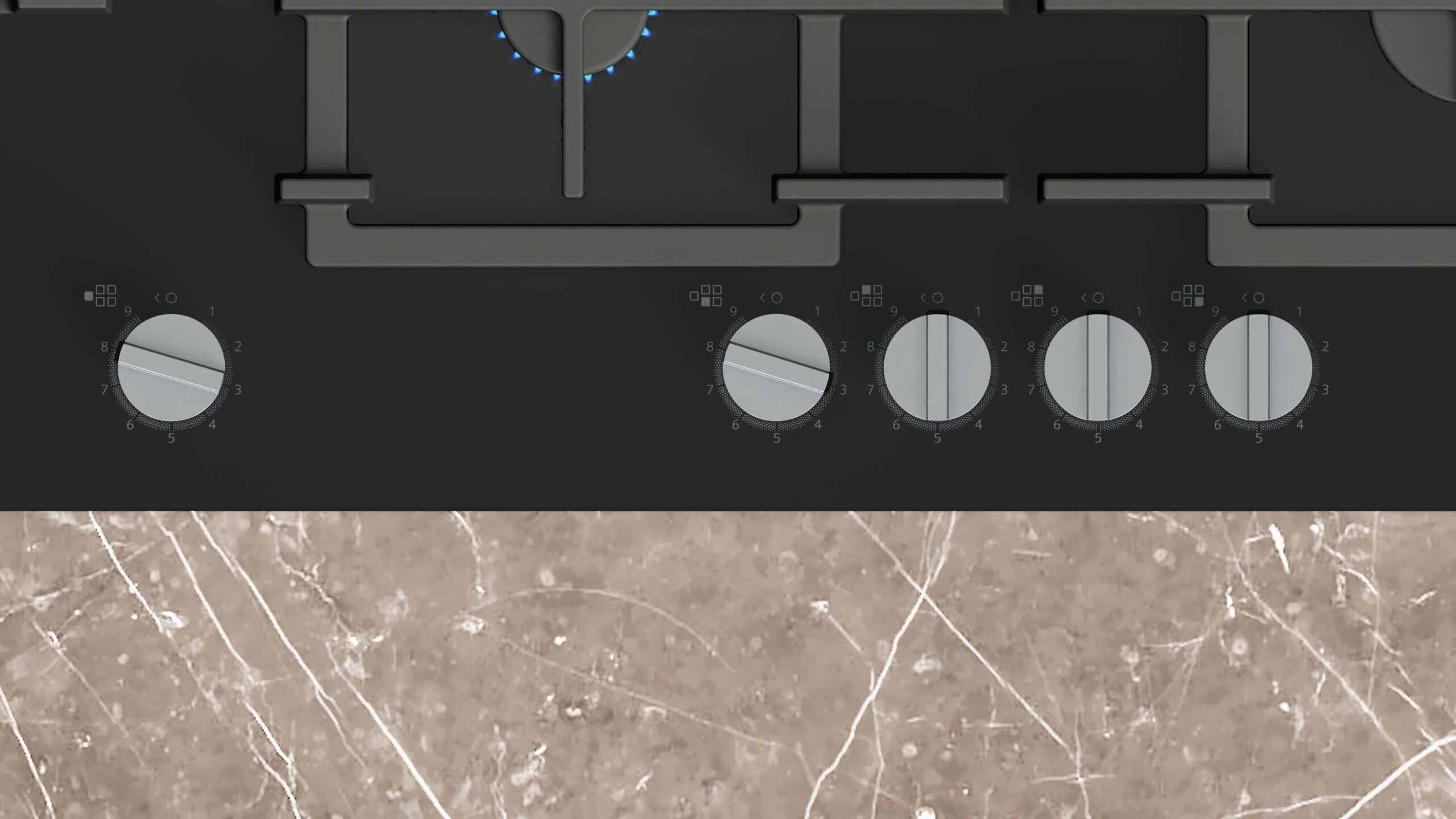

- Type of control setting devices: Rotary control
- Hob ignition: Knob ignition
- One piece burner: No
Connectivity
- Home Connect: No
Safety

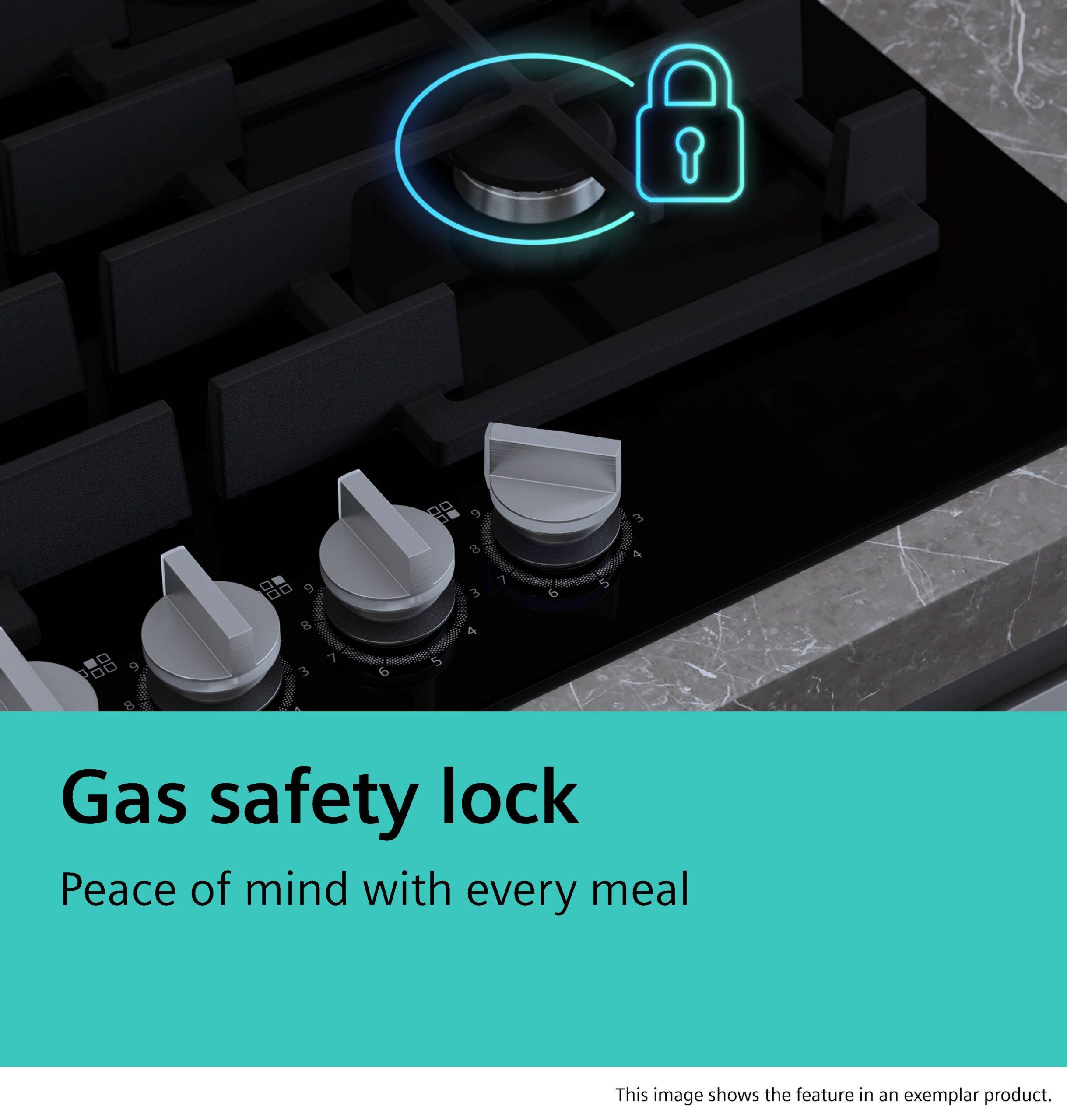

- Safety device: Flame failure safety device
- Residual heat indicator: Separate
- Main on/off switch: No
.
.
.
