£457.50 Exc. VAT

LC97BHM50B

Box design extractor hood with high extraction rate.

Add to Wishlist
Add to Wishlist
SKU: LC97BHM50B Categories: , Tags: , , , ,

Description

LC97BHM50B Spec Sheet

Key performance features:
  • Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15cm:
    max. Normal use 453 m³/h
    Intensive 739 m³/h
  • Noise max. Normal Level: Noise, max. speed in normal use: 65 dB dB*
Features
  • touchControl for extractor speeds and light
  • touchControl with Electronic display
  • 3 x power levels plus intensive setting
  • Twin channel high performance fan motor
  • 2 x 1.5W LED
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6 mins)

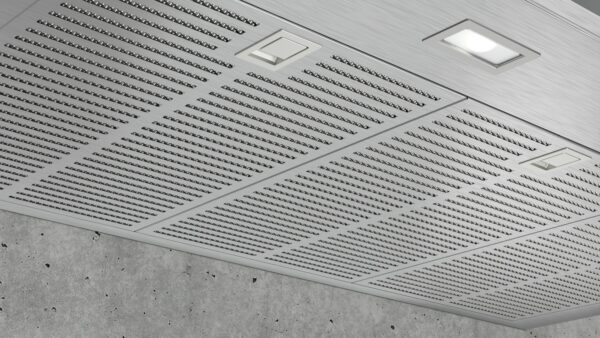

  • 3 x metal grease filter cassettes – dishwasher safe
  • Steel filter cover
  • For wall mounted installation
Design
  • Chimney hood
  • Electronic control
Performance/technical information
  • Suitable for ducted and re-circulating operation
  • For recirculated extraction a recirculating kit or a CleanAir recirculation kit (accessory) is needed
  • Max. extraction rate: 739 m3/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
    Max. normal use: 65dB(A) re 1 pW
    Intensive: 74dB(A) re 1 pW
  • With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
    Extraction rate in recirculation mode:
    Max. normal use: 404 m³/h
    Intensive: 499 m³/h
    Noise level in recirculation mode:
    Max. normal use: 72dB(A) re 1 pW
    Intensive: 76dB(A) re 1 pW
  • Power rating: 255 W
  • Light Intensity: 214 lux
  • Electrical cable length 1.3m
  • Diameter pipe Ø 150mm (Ø 120mm enclosed)
  • Dimensions exhaust air (HxWxD): 635 – 965 x 900 x 500mm
  • Dimensions recirculating, chimney (HxWxD): 635 – 1075 x 900 x 500mm
  • Dimensions recirculating with CleanAir module (HxWxD):
    703 x 900 x 500mm – mounting with outer chimney
    833 – 1163 x 900 x 500mm – mounting with telescopic chimney
  • Blower Efficiency Class: B*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 62.5 kWh/year*
Optional accessories
  • Recirculating kit LZ00XXP00

.

ICON_LEDILLUMINATION ICON_TOUCHCONTROL

.

.

.



Additional information

Dimensions 50 × 90 cm
Colour

Stainless Steel

Energy Rating

B

Size

90cm
